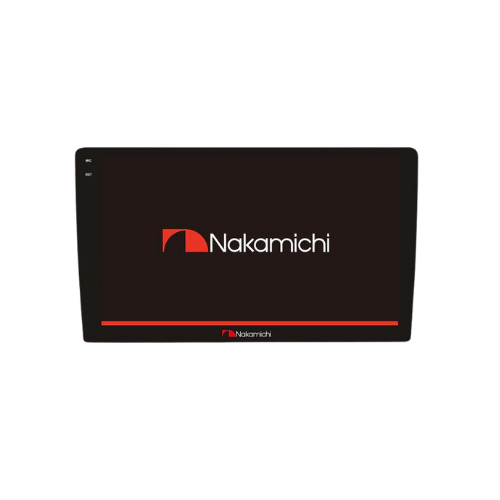

Nakamichi 9″ Double Din Head Unit NAM5960 Pro A9Z

Product Info

Feel the power of the 4×50W audio system, with 4V pre-output and support for various audio formats like MP3, APE, AAC, and FLAC. The NAM5960 Pro A9Z offers a comprehensive video experience, supporting formats such as H264, MP4, AVI, MKV, and FLV. With user-friendly features like USB readability and charging, as well as radio, the Nakamichi NAM5960 Pro A9Z is the perfect fusion of cutting-edge technology and sleek design.

Features

Supports Bluetooth (Hands-Free Calling and Wireless Audio Streaming)
Android and iPhone mirror link via USB cable
9″ full capacitive touch screen
Supports 1080P video playback

Description

General

Operation Voltage	14.4V(10.5-16V)
Installation Size	Thickness:42mm
Net Weight	9″ : 700g

System

Operating system	NK Android 12.0
DDR	4GB
Flash	64GB

Radio

FM Frequency range	87.5-108.0MHZ
AM Frequency range	522-1620KHZ

Bluetooth

Communication system	BT 4.2 +EDR
Frequency band	2.4GHZ
Max Range	5m
Output	BT Standard Power 2 Class

USB interface

USB	Readable/chargeable(5±0.25V/1A)
Cellular	4g Support

Audio

Max Power	4×50W
Front output(V)	4V/10KΩ
Pre-output impedance	≤600Ω
Speakers impedance	4-8Ω

TFT screen item

Size	9″
Display Resolution	1280×720 or 2000 x 1200 IPS QLED Screen
Contrast ratio	500
Brightness	500nit

Video

External Video Input system	NTSC/PAL/SECAM
External Video Input	1VP-P/75Ω

Video Format

H264/MP4/AVI/MKV/FLV

Audio Format

MP3/APE/AAC/FLAC
