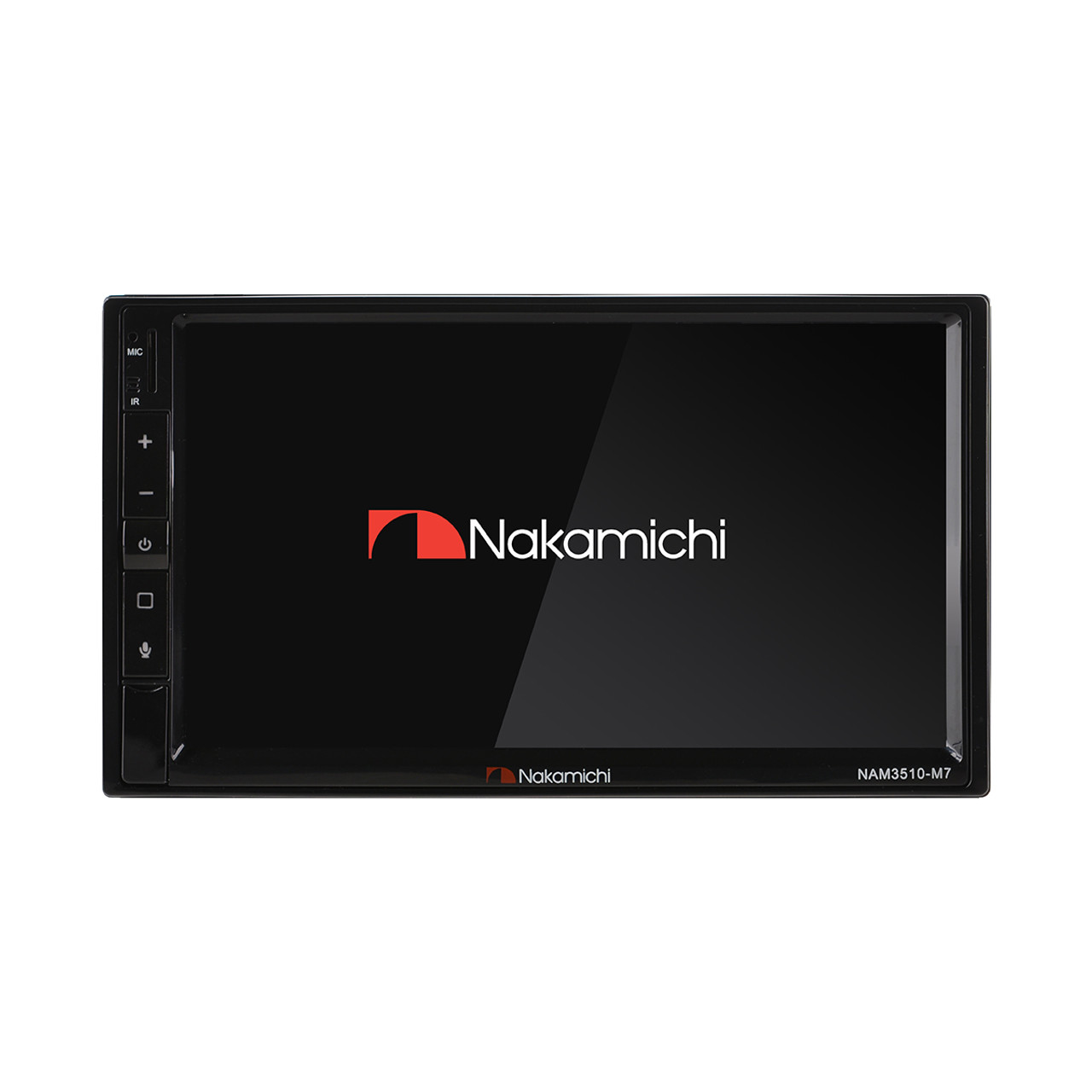

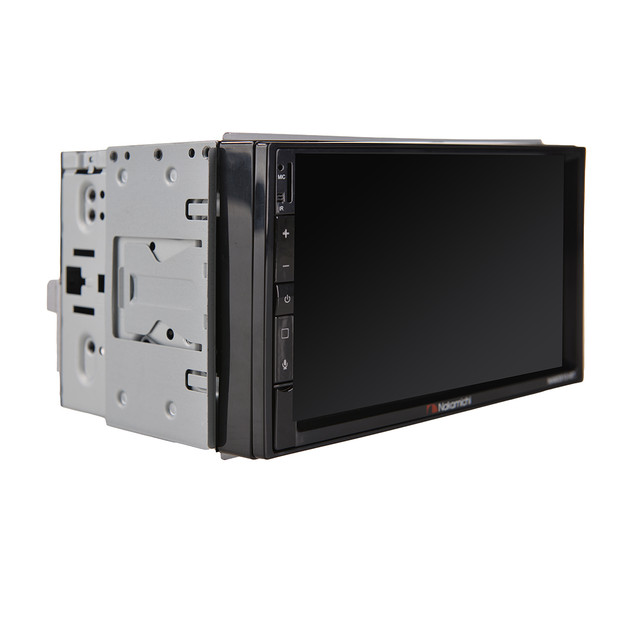

Nakamichi 7″ Double Din Head Unit NAM3510

Product Info

Feel the power of the 4×50W audio system, with 4V pre-output and support for various audio formats like MP3, APE, AAC, and FLAC. The NAM3510-M7 offers a comprehensive video experience, supporting formats such as H264, MP4, AVI, MKV, and FLV. With user-friendly features like USB readability and charging, as well as radio, the Nakamichi NAM3510-M7 is the perfect fusion of cutting-edge technology and sleek design.

Features

Supports Bluetooth (Hands-Free Calling and Wireless Audio Streaming)
Android and iPhone mirror link via USB cable
7″ full capacitive touch screen
Supports 1080P video playback

Description

General

Operation votage	14.4V(10.5-16V)
Product size	178×100×128MM
Panel Installation Size	178×100mm 170×96mm
Net weight	1.3kg/1.5kg
Fuse	Small fuse (11×16.5mm) 15A(Blue)

TFT screen item

Size	9”/10.1”
Display Resolution	1240×600
Contrast ratio	500
Brightness	500nit

Buletooth

Communcation system	BT 5.0 +EDR
Frequency band	2.4GHZ
Max Range	5m

Audio

Max Power	4×50W
Pre-output(V)	4V/10KΩ
Pre-output impedance	≤600Ω
Speakers impedance	4-8Ω

Video

External Video Input system	NTSC/PAL/SECAM
External Video Input	1VP-P/75Ω

Video Format

H264/MP4/AVI/MKV/FLV

Audio Format

MP3/APE/AAC/FLAC

USB interface

USB	Readable/chargeable(5±0.25V/1A)

Radio

FM Frequency	87.5-108.0MHZ
AM Frequency	522-1620KHZ
Presets	18 FM ,12 AM
